Termica system makes it possible to realize curtain walls with thermal break, with structural steel mullions and transoms with a high moment of inertia and slender 50 mm (2”) sections. These characteristics guarantee the achievement of those required static values while, at the same time, reducing the facades size as much as possible. The covers, with a reduced size of 50 mm and available in galvanized steel, stainless steel, corten steel and burnished brass, allow for the facade to be integrated into any architectural context.

TERMICA

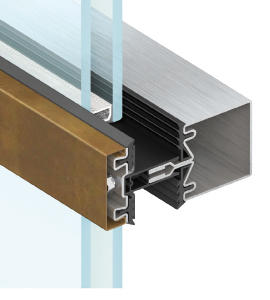

termica is a system designed for thermal break curtain walls, with transoms and mullions with sections of 50 mm and 50 and 100 mm deep. The high elasticity, typical of metal, guarantees a solid yet light and slender structure. Water tightness is ensured by a system of EPDM seals and profiles equipped with drain devices for potential seepage.
The glass of 25-30-35 mm thickness is fitted frontally and fixed to the transoms and mullions by a hold-down device bearing seals. The hold-down device is pre-drilled for screws application.
The performance of termica system has been tested by the best European certifying labs under the reference standards EN 13830.

wind resistance - allowed load ± 2,0 kN/m²
wind resistance - increased load ± 3,0 kN/m²
crash resistance I5 / E5
water tightness – static RE 750
water tightness – dynamic 250 Pa/750 Pa
thermal transmittance (value sect. P.3402) 2,75 W/m²K
air permeability AE
under reference standard EN 13830

termica: size and variations
The termica transom/mullion can be 50 or 100 mm thick.
The size of the internal profiles and external covers is 50 mm; the depth of the cover is 16 mm for the mullions and 13 mm for the transoms.



transom/mullion 100 mm deep | 50 mm face section transom/mullion 50 mm deep | 50 mm face section

application options
termica system is provided with a clevis joint system to be able to join a 50 mm mullion with a 50 mm transom or a 100 mm mullion with a 50 or 100 mm transom.


transom 100 mm | mullion 100 mm transom 100 mm | mullion 50 mm
>

TERMICA UP



termica UP is a system designed for thermally  broken add-on curtain walls, which can be secured with appropriate profiles and gaskets to each girder whether welded (the classic IPE, HEA in steel or stainless steel) or wooden, thus guaranteeing the same high performance. Water tightness is ensured by a system of EPDM gaskets and profiles equipped with drain devices for potential seepage. The high elasticity, typical of metal, guarantees a solid yet light and slender structure.The system is able to support glasses up to 50 mm of thickness, fitted frontally and fixed to the transoms and mullions by a hold-down device bearing gaskets. The performance of termica UP system has been tested by the best European certifying labs under the reference standards EN 13830.

wind resistance - allowed load ± 2,0 kN/m²
wind resistance - increased load ± 3,0 kN/m²
crash resistance I5 / E5
water tightness – static RE 900
water tightness – dynamic 250 Pa/750 Pa
thermal transmittance (value sect. p. 3402) -
air permeability AE
under reference standard EN 13830

termica UP: size and variations
application to transom | 50 mm face section application to mullion | 50 mm face section

termica UP: application options




IPE welded beam rectangular pipe customised welded girder wooden girder
>
